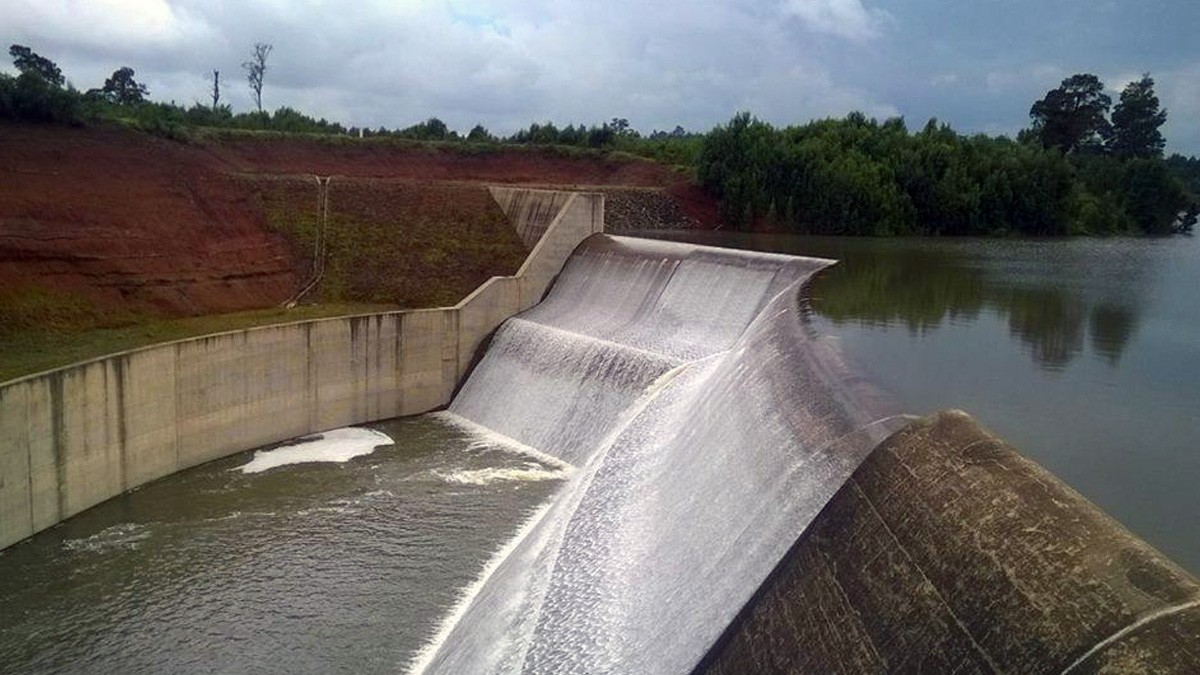

Sasumua DamSasumua Dam is one of AWWDA assets. The dam is located on the Sasumua stream, tributary of Chania near Njabini Township on the South end of the Aberdare Mountains. The dam and treatment works are owned by AWWDA Works Development Agency and operated by Nairobi City Water & Sewerage Company (NCWSC) which has been appointed by the Board to provide water and sewerage services to the residents of Nairobi.Historical BackgroundInitially a 33.5m high earth rolled dam was constructed and brought into operation in 1956. During the construction of the dam a small concrete gravity weir was also built on the Chania River to divert the river flows via a short aqueduct to Sasumua stream about 5Km upstream of the dam. Between 1963 the dam was raised a further 7.9 meters bringing the total height of the embankment to 41.4 meters and the Kiburu East & West streams diverted into the dam.Storage capacitySasumua reservoir storage/ design capacity is 15.9 million m3 and contributes approximately 12% of Nairobi’s water supply.Catchment area and tree planting programme The combined catchment area of the Sasumua, Chania and Kiburu streams is approximately 12,800 hectares. AWWDA Works Development Agency (AWWDA) has identified Sasumua Dam as a critical water tower and has, since 2006 planted over 53,000 indigenous tree seedlings with the aim of restoring dam catchment areaTreatment plantSasumua treatment plant is composed of three phases; Phase 1 of the treatment works was commissioned in 1956 to treat 18,000m3/day of raw water, followed by stages 2 and 3 in 1961 and 1968 respectively. The combined stages were designed to treat a total of 63,500m3/day.Treatment is by horizontal-flow sedimentation (Phase 1) or vertical-flow sedimentation (Phase 2 & 3 followed by rapid gravity sand filtration. Disinfection is by chlorination and pH adjustment by the addition of soda ash. Alum is used for coagulation. After treatment water is conveyed to Nairobi by means of a 60Km long buried steel pipeline which is duplicated over the first 30Km. Several off takes feed small distribution areas directly from the transmission main (these areas are: Kyuna, Kitisuru, Loresho, Lower Kabete) being feeding into reservoirs at Kabete Treatment Works in Nairobi.Damages and rehabilitation works During the rainy season of May 2003, heavy damages occurred at the spillway with an associated loss of reservoir capacity by over 50%.An open channel on the right bank reservoir for flood control and a coffer dam upstream of the damaged spillway were constructed as part of emergency measures to enable safe operation of the reservoir until full rehabilitation works were completed. The project for rehabilitating the dam commenced in Dec. 2008 and was completed at and commissioned in April 2011. The objective was to restore the dam back to its original design capacity. Storage Reservoir Operation To ensure efficient operation and also to safeguard supplies during periods of drought, control rules have been developed for water releases from the dam optimumuse of the stored water. The objective ofthese control rules is to determine the maximum permissible rate of abstraction from the dam. Principally, the rules limit the quantity of water that can be drawn off when the reservoir levels are low as a conservation measure so as to sustain indefinitely. Currently the stored water volumes stand at 12.8million m3, equivalent to 80.5% of reservoir design capacity and raw water abstraction rate from the reservoir to the treatment plant is at 2,441m3/hr (58,584m3/ day). Sasumua Dam: Facts And Figures Geographical Location: Sasumua stream, tributary of Chania near Njabini Township on the South end of the Aberdare Mountains. Historical background: Sasumua stream, tributary of Chania near Njabini Township on the South end of the Aberdare Mountains. Storage capacity: Sasumua reservoir storage/design capacity is 15.9 million m3 and contributes approximately 12% of Nairobi’s water supply. Catchment area: The combined catchment area of the Sasumua, Chania and Kiburu streams is approximately 12,800 hectares. Treatment plant: Sasumua treatment plant is composed of three phases; Phase 1 which treat 18,000m3/day of raw water, stages 2 and 3 with a combined capacity of 63,500m3/day. Damages: During the rainy season of May 2003, heavy damages occurred at the spillway with an associated loss of reservoir capacity by over 50%. Rehabilitation works: The project for rehabilitating the dam commenced in December. 2008 and was completed at and commissioned in April 2011. The Agency Who We AreVision & MissionOur MandateStrategic PlanQuality PolicyLeadership Board Of Directors Top Management Organization Structure Our ProjectsOngoing ProjectsCompleted ProjectsPlanned ProjectsDo you need any help? Call +254 0715 688 272.Please visit our headquarters at Athi Water Plaza, Muthaiga North Road, Off Kiambu Road.CONTACT US
During the rainy season of May 2003, heavy damages occurred at the spillway with an associated loss of reservoir capacity by over 50%.An open channel on the right bank reservoir for flood control and a coffer dam upstream of the damaged spillway were constructed as part of emergency measures to enable safe operation of the reservoir until full rehabilitation works were completed. The project for rehabilitating the dam commenced in Dec. 2008 and was completed at and commissioned in April 2011. The objective was to restore the dam back to its original design capacity.
To ensure efficient operation and also to safeguard supplies during periods of drought, control rules have been developed for water releases from the dam optimumuse of the stored water. The objective ofthese control rules is to determine the maximum permissible rate of abstraction from the dam. Principally, the rules limit the quantity of water that can be drawn off when the reservoir levels are low as a conservation measure so as to sustain indefinitely. Currently the stored water volumes stand at 12.8million m3, equivalent to 80.5% of reservoir design capacity and raw water abstraction rate from the reservoir to the treatment plant is at 2,441m3/hr (58,584m3/ day).
Geographical Location: Sasumua stream, tributary of Chania near Njabini Township on the South end of the Aberdare Mountains. Historical background: Sasumua stream, tributary of Chania near Njabini Township on the South end of the Aberdare Mountains. Storage capacity: Sasumua reservoir storage/design capacity is 15.9 million m3 and contributes approximately 12% of Nairobi’s water supply. Catchment area: The combined catchment area of the Sasumua, Chania and Kiburu streams is approximately 12,800 hectares. Treatment plant: Sasumua treatment plant is composed of three phases; Phase 1 which treat 18,000m3/day of raw water, stages 2 and 3 with a combined capacity of 63,500m3/day. Damages: During the rainy season of May 2003, heavy damages occurred at the spillway with an associated loss of reservoir capacity by over 50%. Rehabilitation works: The project for rehabilitating the dam commenced in December. 2008 and was completed at and commissioned in April 2011.
